We would like to announce the compatibility of our products after
installing the "Microsoft Windows XP Service Pack 2 (hereafter
referred to as Windows XP SP2)" released on September 2,
2004.
Some of the functions in the bundled software may not be supported
after installing the Windows XP SP2. In this case, the network
configuration needs to be changed as mentioned below. Other functions
are supported as they were before Windows XP SP2 was installed.
PRICOM cannot be connected via USB Utility , SX
Virtual Link
Object:
USB Utility,SX Virtual Link
How to fix

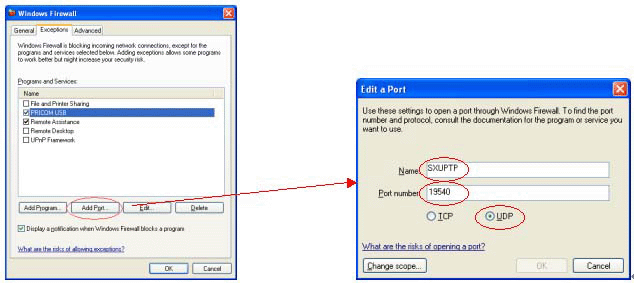

The port (UDP #19540) that USB Utility uses needs to be opened.
(1)
Select "start" - "Control Panel."
(2)
Click "Windows Firewall," and select "Exceptions" tab.
(3)
Select "Add Port," and enter SXUPTP for "Name," and 19540 or "Port number." Select UDP .
PRICOM cannot be found when it is beyond the router. (1)
Objects:
USB Utility , SX Virtual Link , AdminManager, SetupAssistant
How to fix:

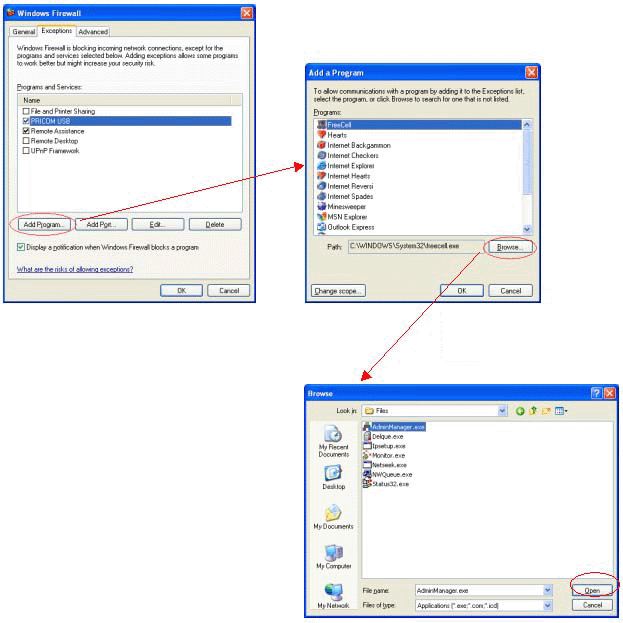

Add programs manually from "Exceptions" tab in "Windows Firewall."
(1)
Select "start" - "Control Panel."
(2)
Click "Windows Firewall," and select "Exceptions" tab.
(3)
Add target programs from "Add Program."
Note: Only installed applications are listed.
When executing directly from CD-ROM, the application
is not listed. Click "Browse" and select the
application execution file.
(For the program that is not listed, click "Browse,"
and select the execution file.)
Utility
Path
Device Server
Setup CD
D:\Utility\Quick\Setup.exe
User Software
CX Setup
D:\Utility\Pricinst.exe
User Software
CX2 PRICOM Wireless Setup
D:\Utility\Setup\CX2Setup.exe
User Software
SX Quick Setup
D:\Utility\Quickset\SXSetup.exe
User Software
SXAdminManager
D:\Utility\Advanced\Files\AdminManager.exe
User Software
SX2 PRICOM Wireless Setup
D:\Utility\Setup\SX2Setup.exe
*Select CD-ROM drive for "D:\."
PRICOM cannot be found when it is beyond the router.
(2)
Since the above programs are not execution file,
they cannot be added to the list of exceptions of the firewall.
If the IP address for printing is available, it can be entered
directly. (Configuration is not necessary.)

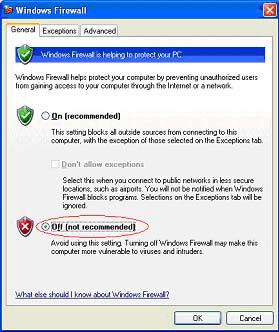

Disable the firewall function temporarily in order to search
a device beyond the router.
(1)
Select "start" - "Control
Panel."
(2)
Click "Windows Firewall," and
select "Off (not recommended).".
(3)
Change the firewall configuration to "On (recommended)"after configuring the
utilities including JC-Print2002.
PRICOM with 0.0.0.0 IP address cannot be searched.
Add programs manually from "Exceptions" tab in
"Windows Firewall."
For the procedure, refer to "PRICOM cannot be found when it is beyond the router (1)."

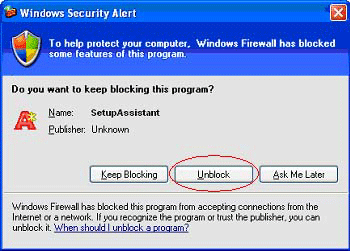

The "Windows Security Alert" appears regarding
SetupAssistant.
The "Windows Security Alert" appears when
upgrading the SetupAssistant via FTP.
Objects:
SetupAssistant
How to fix:
Click "Unblock." The program is added
to the list of exceptions of the firewall. Therefore, the
alert dialog box will not appear from then on.

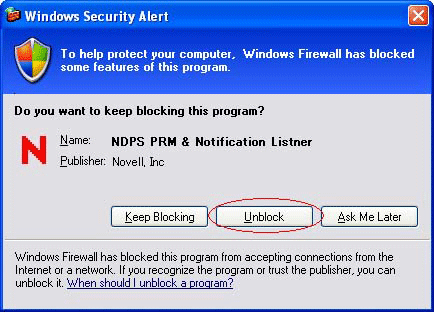

The "Windows Security Alert" appears regarding
Novell Client32.
The "Windows Security Alert" appears when
rebooting a PC after installing Novell Client32.
Objects:
Novell Client32
How to fix:
Click "Unblock." The program is added
to the list of exceptions of the firewall. Therefore, the
alert dialog box will not appear from then on. If "Unblock"
is not selected, the events, including paper jam, cannot be
displayed when printing via NDPS Gateway.
Appendix
Current Windows XP SP2 is still unstable. Therefore, the procedures
mentioned above could be changed. When new facts regarding Windows
XP SP2 are discovered, the contents on this page are subject to
change.
